50m3-500m3/H Processing Capacity Electrical Moter Power Water Wheel Stone Washing Machine

Model NO. : QHSM-5

Speed of Screw : 16rpm

Motor Type : AC Motor

Motor Power : 18.5KW

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

Rotation Speed : 0.8-1.2 r/min

Wheel Bucket Diameter : 2200mm

Screw Diameter : 1000mm

Warranty : 1 Year

After-sales Service : Longlife

Processing Capacity : 50m3-500m3/H

Length : 15m-30m

Main Reducer Model : 650

Acessory Reducer Size : 250

Max. Water Consumption : 200m3

Total Power : 55kw-200kw

Transport Package : Canvas

Specification : Max. capacity 500m3

Trademark : Set Sail

Origin : China

HS Code : 8474100000

Supply Ability : 2500set /Year

Type : Wheel Sand Washing Machine

Capacity : 200-300t/h

Water Consumption : 40-300t/h

Samples : US$ 4000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Electrical moter power water wheel stone washing machine

1. General description:

Wheel sand washing machine (stone washing machine )driven by the motor and reducer keep the impeller in the water tank making the circular to get rid of silt and others .after sand is cleared through the mesh in the wheel to into the belt converyor to the destination . if the sand so dirty we use the double water wheel washing wheel sand washing machine. wheel sand washing machine combins with crusher and drum scrren so on equipment to make the complete the production line

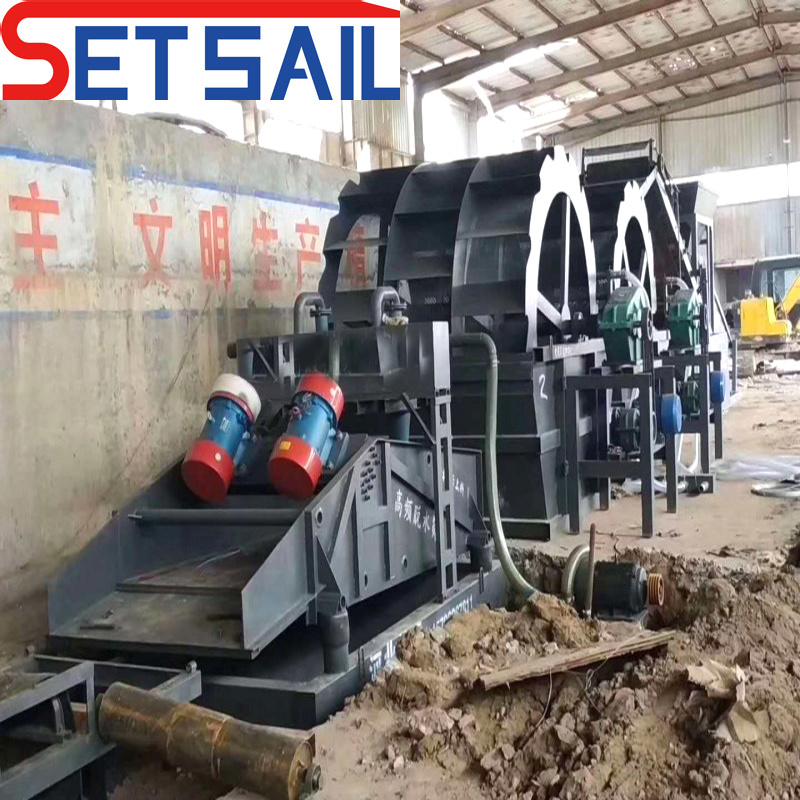

2.Product picture :

50m3-500m3/H Processing Capacity Electrical Moter Power Water Wheel Stone Washing Machine

3. Basic parameter :

Basic Parameters of Sand Washer
Type	QHSWM12-26	QHSWM15-28	QHSWM18-30	QHSWM20-30
Dimension(LWH)	3400x2300x2700	3600x2800x2900	3800x3100x3100	3800x3400x3100
Water wheel dimension	φ2600x1200double row	φ2800x1500double	φ3000x1800triplex	φ3000x2000triplex
Material	8mm	8mm	10mm	10mm
Feeding hopper dimension	3400x1300	3600x1600	3800x1900	3800x2100
Material	4mm	4mm	5mm	5mm
Working capacity m³/h	50-60	80-100	120-150	150-180
Max.approval grain size(mm)	≤12	≤12	≤12	≤12
Main Power(kw)	7.5kw-4	11kw-4	15kw-4	18.5kw-4
Submersible pump
Power	5.5kw	7.5kw	7.5kw	5.5kw x2
Clean Water Flow m³/h	60	65	65	60
Conveyor
Length mm	10000	10000	10000	10000
Belt width mm	600	800	1000	1000
Frame material	12#channel steel	12#channel steel	12#channel steel	14#channel steel
Electromotor kw	5.5	7.5	11	15

4.Product advantage:

1	Very simple and fast assembly and dis-assembly. simple operation .easy to control.
2	Self propulsion system. can be propulsed in place when moved.
3	High efficience. large output and long distance of pump.Pumping depth reaches up to 20-30m underwater
4	Hull consists of multiple pontoons connected by proven coupling system.
5	Highly efficient fuel consumption and minimum overall operational costs
6	Good access to all parts.especially the dredge pump wearing parts.Fresh water cooling system
7	OEM. ODM. ISO .CE .customization are available

5.our wrokshop:

6.our factory :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .

7. customer visited our factory :

8. Factory certificate:
